| 12038 7 impellers 115V70 ~ 105CFM |  |
Specification
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
|
VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O |
dB-A |
||
|
12038B1HL |
Ball |
115 |
50/60 |
0.24/0.21 |
19/17 |
2500/2600 |
95/105 |
2.70/2.97 |
6.6/6.6 |
42/45 |
|
12038B1HT |
Ball |
115 |
50/60 |
0.24/0.21 |
19/17 |
2500/2600 |
95/105 |
2.70/2.97 |
6.6/6.6 |
42/45 |
|
12038B1ML |
Ball |
115 |
50/60 |
0.19/0.17 |
15/14 |
2350/2200 |
90/80 |
2.55/2.27 |
5.6/4.0 |
40/39 |
|
12038B1MT |
Ball |
115 |
50/60 |
0.19/0.17 |
15/14 |
2350/2200 |
90/80 |
2.55/2.27 |
5.6/4.0 |
40/39 |
|
12038B1LL |
Ball |
115 |
50/60 |
0.16/0.15 |
13/12 |
2100/2000 |
78/72 |
2.21/2.04 |
3.8/3.0 |
37/35 |
|
12038B1LT |
Ball |
115 |
50/60 |
0.16/0.15 |
13/12 |
2100/2000 |
78/72 |
2.21/2.04 |
3.8/3.0 |
37/35 |
|
12038S1HL |
Sleeve |
115 |
50/60 |
0.25/0.22 |
19/17 |
2450/2550 |
92/95 |
2.60/2.70 |
6.1/5.3 |
41/43 |
|
12038S1HT |
Sleeve |
115 |
50/60 |
0.25/0.22 |
19/17 |
2450/2550 |
92/95 |
2.60/2.70 |
6.1/5.3 |
41/43 |
|
12038S1ML |
Sleeve |
115 |
50/60 |
0.22/0.20 |
17/16 |
2400/2400 |
90/90 |
2.55/2.55 |
6.0/4.6 |
41/41 |
|
12038S1MT |
Sleeve |
115 |
50/60 |
0.22/0.20 |
17/16 |
2400/2400 |
90/90 |
2.55/2.55 |
6.0/4.6 |
41/41 |
|
12038S1LL |
Sleeve |
115 |
50/60 |
0.17/0.16 |
13/12 |
2300/1950 |
85/70 |
2.41/1.98 |
4.7/2.6 |
40/35 |
|
12038S1LT |
Sleeve |
115 |
50/60 |
0.17/0.16 |
13/12 |
2300/1950 |
85/70 |
2.41/1.98 |
4.7/2.6 |
40/35 |
All model could be customized. Please contact with YYC Sales. Safety: UL/TUV/CE/CCC
Specifications are subject to change without notice.

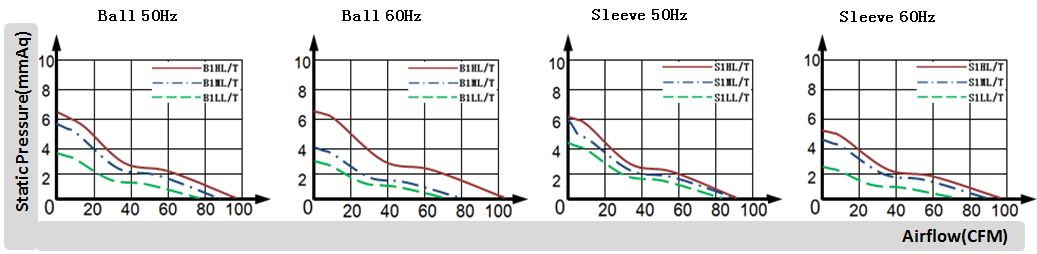

Air Flow-Static Pressure Characteristics
Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire or Terminals
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package:40PCS/CTN
