| 9225 115V22 ~ 34 CFM |  |
Specification
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
|
VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O |
dB-A |
||
|
9225B1HL |
Ball |
115 |
50/60 |
0.18/0.15 |
15.5/12.3 |
2600/3100 |
25/34 |
0.71/0.96 |
3.5/4.8 |
34/37 |
|
9225B1HT |
Ball |
115 |
50/60 |
0.18/0.15 |
15.5/12.3 |
2600/3100 |
25/34 |
0.71/0.96 |
3.5/4.8 |
34/37 |
|
9225B1ML |
Ball |
115 |
50/60 |
0.06/0.05 |
5.3/4.3 |
2400/2600 |
24/29 |
0.68/0.82 |
2.7/3.1 |
32/34 |
|
9225B1MT |
Ball |
115 |
50/60 |
0.06/0.05 |
5.3/4.3 |
2400/2600 |
24/29 |
0.68/0.82 |
2.7/3.1 |
32/34 |
|
9225B1LL |
Ball |
115 |
50/60 |
0.04/0.04 |
4.1/3.7 |
2200/2200 |
21/21 |
0.59/0.59 |
2.1/1.7 |
28/28 |
|
9225B1LT |
Ball |
115 |
50/60 |
0.04/0.04 |
4.1/3.7 |
2200/2200 |
21/21 |
0.59/0.59 |
2.1/1.7 |
28/28 |
|
9225S1HL |
Sleeve |
115 |
50/60 |
0.18/0.15 |
15.6/12.7 |
2500/3000 |
24/32 |
0.68/0.90 |
3.3/4.5 |
33/36 |
|
9225S1HT |
Sleeve |
115 |
50/60 |
0.18/0.15 |
15.6/12.7 |
2500/3000 |
24/32 |
0.68/0.90 |
3.3/4.5 |
33/36 |
|
9225S1ML |
Sleeve |
115 |
50/60 |
0.09/0.08 |
7.9/6.4 |
2400/2700 |
23/28 |
0.65/0.80 |
3.1/3.2 |
32/34 |
|
9225S1MT |
Sleeve |
115 |
50/60 |
0.09/0.08 |
7.9/6.4 |
2400/2700 |
23/28 |
0.65/0.80 |
3.1/3.2 |
32/34 |
|
9225S1LL |
Sleeve |
115 |
50/60 |
0.06/0.05 |
5.3/4.3 |
2300/2300 |
22/22 |
0.62/0.62 |
2.5/2.0 |
29/29 |
|
9225S1LT |
Sleeve |
115 |
50/60 |
0.06/0.05 |
5.3/4.3 |
2300/2300 |
22/22 |
0.62/0.62 |
2.5/2.0 |
29/29 |
All model could be customized. Please contact with YYC Sales. Safety:UL/TUV/CE/CCC
Specifications are subject to change without notice.

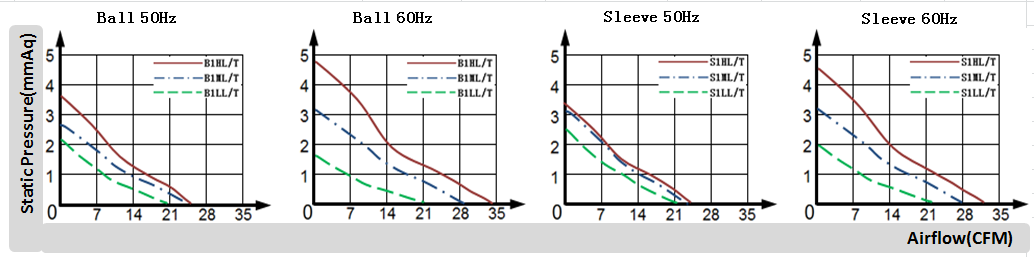

Air Flow-Static Pressure Characteristics

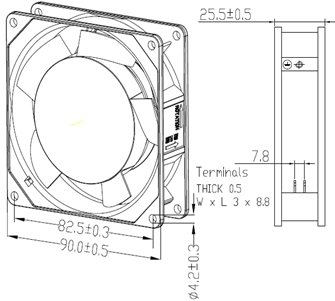

Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire or Terminals
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package:50PCS/CTN
