Products
| 9238 220/115V Ya-cool61 ~ 70 CFM |  |
Specification
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
|
VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O |
dB-A |
||
|
9238B2HL |
Ball |
220-240 |
50/60 |
0.13/0.10 |
15/11 |
2800/3300 |
40/50 |
1.15/1.42 |
5.9/8.3 |
38/43 |
|
9238B2HT |
Ball |
220-240 |
50/60 |
0.13/0.10 |
15/11 |
2800/3300 |
40/50 |
1.15/1.42 |
5.9/8.3 |
38/43 |
|
9238B1HL |
Ball |
115 |
50/60 |
0.25/0.18 |
15/11 |
2800/3300 |
40/47 |
1.18/1.33 |
5.5/7.4 |
38/43 |
|
9238B1HT |
Ball |
115 |
50/60 |
0.25/0.18 |
15/11 |
2800/3300 |
40/47 |
1.18/1.33 |
5.5/7.4 |
38/43 |
All model could be customized. Please contact with YYC Sales. Safety:UL/TUV/CE/CCC
Specifications are subject to change without notice.

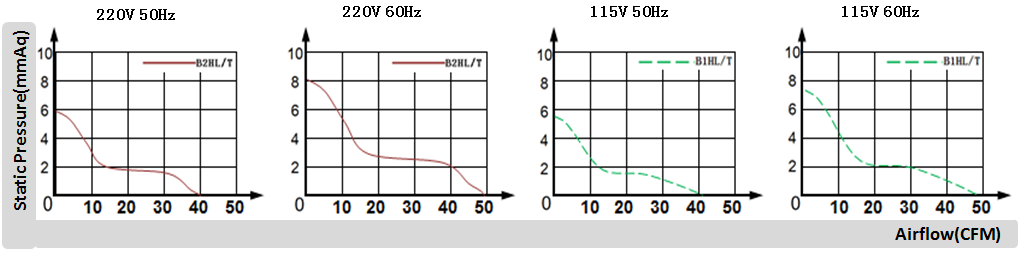

Air Flow-Static Pressure Characteristics
Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire or Terminals
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package: 40PCS/CTN
