| 15050Z 5 impellers 220V130 ~ 190 CFM |  |
Specification
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
|
VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O |
dB-A |
||
|
15050B2HLZ |
Ball |
220-240 |
50/60 |
0.31/0.26 |
42/37 |
2700/3000 |
178/190 |
5.04/5.38 |
13.3/12.1 |
56/60 |
|
15050B2HTZ |
Ball |
220-240 |
50/60 |
0.31/0.26 |
42/37 |
2700/3000 |
178/190 |
5.04/5.38 |
13.3/12.1 |
56/60 |
|
15050B2MLZ |
Ball |
220-240 |
50 |
0.15 |
22 |
2450 |
155 |
4.39 |
8.0 |
52 |
|
15050B2MTZ |
Ball |
220-240 |
50 |
0.15 |
22 |
2450 |
155 |
4.39 |
8.0 |
52 |
|
15050B2LLZ |
Ball |
220-240 |
50 |
0.14 |
20 |
2050 |
133 |
3.77 |
4.0 |
47 |
|
15050B2LTZ |
Ball |
220-240 |
50 |
0.14 |
20 |
2050 |
133 |
3.77 |
4.0 |
47 |
|
15050S2HLZ |
Sleeve |
220-240 |
50/60 |
0.31/0.27 |
42/39 |
2700/2900 |
175/186 |
4.96/5.27 |
13.0/11.0 |
56/59 |
|
15050S2HTZ |
Sleeve |
220-240 |
50/60 |
0.31/0.27 |
42/39 |
2700/2900 |
175/186 |
4.96/5.27 |
13.0/11.0 |
56/59 |
|
15050S2MLZ |
Sleeve |
220-240 |
50 |
0.17 |
25 |
2400 |
155 |
4.39 |
6.8 |
51 |
|
15050S2MTZ |
Sleeve |
220-240 |
50 |
0.17 |
25 |
2400 |
155 |
4.39 |
6.8 |
51 |
|
15050S2LLZ |
Sleeve |
220-240 |
50 |
0.13 |
20 |
1950 |
130 |
3.68 |
2.7 |
45 |
|
15050S2LTZ |
Sleeve |
220-240 |
50 |
0.13 |
20 |
1950 |
130 |
3.68 |
2.7 |
45 |
All model could be customized. Please contact with YYC Sales. Safety: UL/TUV/CE/CCC
Specifications are subject to change without notice.

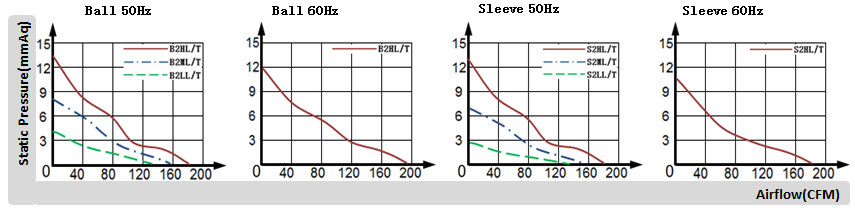

Air Flow-Static Pressure Characteristics

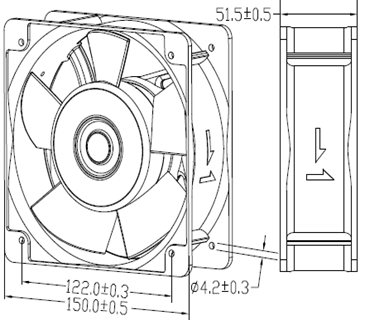

Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire or Terminals
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package: 20PCS/CTN
