Products
| 15050Z 5 impellers 115V130 ~ 190 CFM |  |
Specification
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
|
VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O |
dB-A |
||
|
15050B1HLZ |
Ball |
115 |
50/60 |
0.64/0.53 |
46/40 |
2700/3050 |
180/195 |
5.10/5.52 |
13.3/14.4 |
56/60 |
|
15050B1HTZ |
Ball |
115 |
50/60 |
0.64/0.53 |
46/40 |
2700/3050 |
180/195 |
5.10/5.52 |
13.3/14.4 |
56/60 |
|
15050B1MLZ |
Ball |
115 |
60 |
0.4 |
30 |
2450 |
153 |
4.33 |
5.3 |
52 |
|
15050B1MTZ |
Ball |
115 |
60 |
0.4 |
30 |
2450 |
153 |
4.33 |
5.3 |
52 |
|
15050B1LLZ |
Ball |
115 |
60 |
0.39 |
30 |
2050 |
126 |
3.77 |
3.7 |
47 |
|
15050B1LTZ |
Ball |
115 |
60 |
0.39 |
30 |
2050 |
126 |
3.77 |
3.7 |
47 |
|
15050S1HLZ |
Sleeve |
115 |
50/60 |
0.63/0.57 |
0.63/0.57 |
2700/2950 |
175/190 |
4.96/5.38 |
12.5/11.0 |
56/59 |
|
15050S1HTZ |
Sleeve |
115 |
50/60 |
0.63/0.57 |
0.63/0.57 |
2700/2950 |
175/190 |
4.96/5.38 |
12.5/11.0 |
56/59 |
|
15050S1MLZ |
Sleeve |
115 |
60 |
0.47 |
36 |
2600 |
175 |
4.96 |
7.0 |
53 |
|
15050S1MTZ |
Sleeve |
115 |
60 |
0.47 |
36 |
2600 |
175 |
4.96 |
7.0 |
53 |
|
15050S1LLZ |
Sleeve |
115 |
60 |
0.45 |
35 |
2000 |
130 |
3.68 |
3.4 |
45 |
|
15050S1LTZ |
Sleeve |
115 |
60 |
0.45 |
35 |
2000 |
130 |
3.68 |
3.4 |
45 |
All model could be customized. Please contact with YYC Sales. Safety: UL/TUV/CE/CCC
Specifications are subject to change without notice.

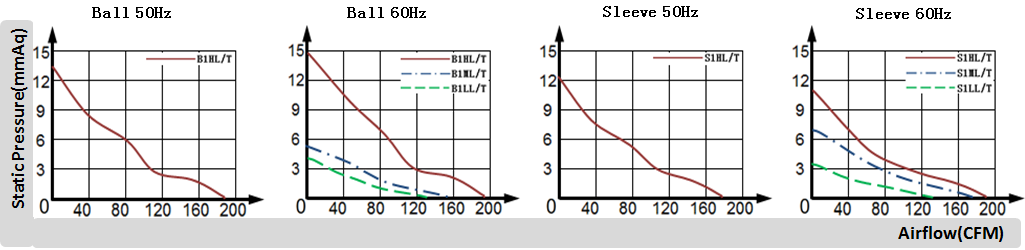

Air Flow-Static Pressure Characteristics
Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire or Terminals
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package: 20PCS/CTN
