| 12038 5 impellers 115V65 ~ 95 CFM |  |
Specification
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
|
VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O |
dB-A |
||
|
12038B1HL |
Ball |
115 |
50/60 |
0.26/0.22 |
20/17 |
2650/3000 |
85/95 |
2.41/2.69 |
8.0/8.6 |
42/45 |
|
12038B1HT |
Ball |
115 |
50/60 |
0.26/0.22 |
20/17 |
2650/3000 |
85/95 |
2.41/2.69 |
8.0/8.6 |
42/45 |
|
12038B1ML |
Ball |
115 |
50/60 |
0.14/0.13 |
11/10 |
2450/2300 |
78/78 |
2.20/2.20 |
5.6/3.4 |
40/39 |
|
12038B1MT |
Ball |
115 |
50/60 |
0.14/0.13 |
11/10 |
2450/2300 |
78/78 |
2.20/2.20 |
5.6/3.4 |
40/39 |
|
12038B1LL |
Ball |
115 |
50/60 |
0.16/0.14 |
10/9 |
2200/2000 |
68/68 |
1.93/1.93 |
3.6/2.9 |
38/35 |
|
12038B1LT |
Ball |
115 |
50/60 |
0.16/0.14 |
10/9 |
2200/2000 |
68/68 |
1.93/1.93 |
3.6/2.9 |
38/35 |
|
12038S1HL |
Sleeve |
115 |
50/60 |
0.26/0.22 |
20/17 |
2600/2900 |
85/95 |
2.41/2.69 |
7.4/7.5 |
41/44 |
|
12038S1HT |
Sleeve |
115 |
50/60 |
0.26/0.22 |
20/17 |
2600/2900 |
85/95 |
2.41/2.69 |
7.4/7.5 |
41/44 |
|
12038S1ML |
Sleeve |
115 |
50/60 |
0.15/0.14 |
12/11 |
2400/2300 |
78/78 |
2.20/2.20 |
5.7/3.5 |
40/39 |
|
12038S1MT |
Sleeve |
115 |
50/60 |
0.15/0.14 |
12/11 |
2400/2300 |
78/78 |
2.20/2.20 |
5.7/3.5 |
40/39 |
|
12038S1LL |
Sleeve |
115 |
50/60 |
0.12/0.11 |
10/9 |
2400/2000 |
78/65 |
2.20/1.84 |
4.8/2.6 |
40/35 |
|
12038S1LT |
Sleeve |
115 |
50/60 |
0.12/0.11 |
10/9 |
2400/2000 |
78/65 |
2.20/1.84 |
4.8/2.6 |
40/35 |
All model could be customized. Please contact with YYC Sales. Safety: UL/TUV/CE/CCC
Specifications are subject to change without notice.

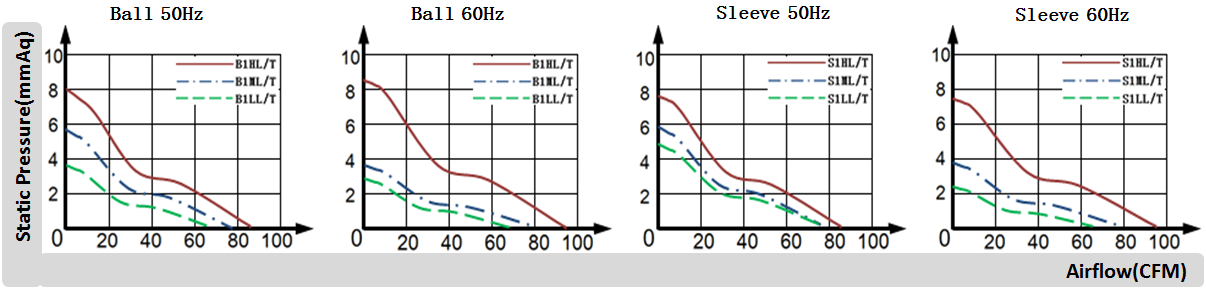

Air Flow-Static Pressure Characteristics
Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire or Terminals
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package:40PCS/CTN
