| 11025 115V38 ~ 51 CFM |  |
Specification
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
|
VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O |
dB-A |
||
|
11025B1HL |
Ball |
115 |
50/60 |
0.18/0.15 |
16/13 |
2250/2550 |
47/51 |
1.33/1.44 |
3.5/4.3 |
33/36 |
|
11025B1ML |
Ball |
115 |
50/60 |
0.12/0.10 |
10.3/8.6 |
2100/2200 |
43/46 |
1.22/1.30 |
3.1/3.0 |
32/33 |
|
11025B1LL |
Ball |
115 |
50/60 |
0.09/0.08 |
8.1/6.8 |
2000/2000 |
42/42 |
1.20/1.20 |
2.7/2.4 |
31/31 |
|
11025S1HL |
Sleeve |
115 |
50/60 |
0.17/0.16 |
16/14.3 |
2100/2300 |
46/46 |
1.30/1.30 |
3.2/3.5 |
32/34 |
|
11025S1ML |
Sleeve |
115 |
50/60 |
0.12/0.10 |
10.5/8.8 |
2000/2000 |
43/43 |
1.22/1.22 |
2.6/2.3 |
31/31 |
|
11025S1LL |
Sleeve |
115 |
50/60 |
0.09/0.08 |
8.1/7 |
1850/1750 |
42/38 |
1.20/1.08 |
2.4/1.9 |
28/27 |
All model could be customized. Please contact with YYC Sales. Safety: CE/CCC
Specifications are subject to change without notice.

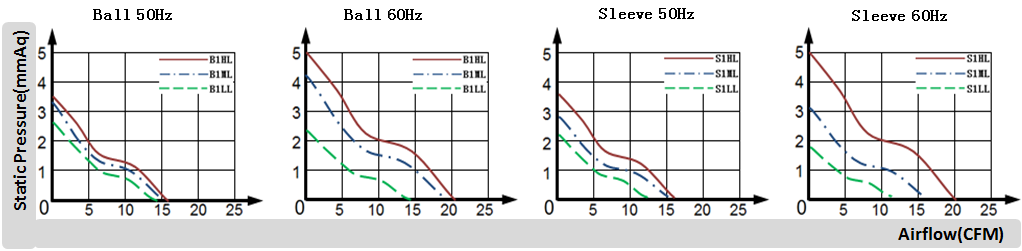

Air Flow-Static Pressure Characteristics
Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package:40PCS/CTN
