| 9225 220V20 ~ 34 CFM |  |
Specification
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
|
VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O |
dB-A |
||
|
9225B2HL |
Ball |
220-240 |
50/60 |
0.07/0.06 |
12/10 |
2600/3050 |
25/34 |
0.71/0.96 |
3.6/4.5 |
34/37 |
|
9225B2HT |
Ball |
220-240 |
50/60 |
0.07/0.06 |
12/10 |
2600/3050 |
25/34 |
0.71/0.96 |
3.6/4.5 |
34/37 |
|
9225B2ML |
Ball |
220-240 |
50/60 |
0.05/0.04 |
8/6.4 |
2300/2500 |
24/24 |
0.68/0.68 |
2.5/2.7 |
31/33 |
|
9225B2MT |
Ball |
220-240 |
50/60 |
0.05/0.04 |
8/6.4 |
2300/2500 |
24/24 |
0.68/0.68 |
2.5/2.7 |
31/33 |
|
9225B2LL |
Ball |
220-240 |
50/60 |
0.03/0.02 |
5/4 |
2100/2000 |
20/20 |
0.57/0.57 |
2.0/1.6 |
28/27 |
|
9225B2LT |
Ball |
220-240 |
50/60 |
0.03/0.02 |
5/4 |
2100/2000 |
20/20 |
0.57/0.57 |
2.0/1.6 |
28/27 |
|
9225S2HL |
Sleeve |
220-240 |
50/60 |
0.07/0.06 |
12/10 |
2500/2850 |
25/29 |
0.71/0.82 |
3.2/3.9 |
33/36 |
|
9225S2HT |
Sleeve |
220-240 |
50/60 |
0.07/0.06 |
12/10 |
2500/2850 |
25/29 |
0.71/0.82 |
3.2/3.9 |
33/36 |
|
9225S2ML |
Sleeve |
220-240 |
50/60 |
0.05/0.04 |
9/7.3 |
2300/2400 |
25/25 |
0.68/0.68 |
2.6/2.4 |
31/32 |
|
9225S2MT |
Sleeve |
220-240 |
50/60 |
0.05/0.04 |
9/7.3 |
2300/2400 |
25/25 |
0.68/0.68 |
2.6/2.4 |
31/32 |
|
9225S2LL |
Sleeve |
220-240 |
50/60 |
0.04/0.03 |
8/6.4 |
2100/2100 |
20/20 |
0.57/0.57 |
1.9/1.5 |
28/28 |
|
9225S2LT |
Sleeve |
220-240 |
50/60 |
0.04/0.03 |
8/6.4 |
2100/2100 |
20/20 |
0.57/0.57 |
1.9/1.5 |
28/28 |
All model could be customized. Please contact with YYC Sales. Safety: UL/TUV/CE/CCC
Specifications are subject to change without notice.

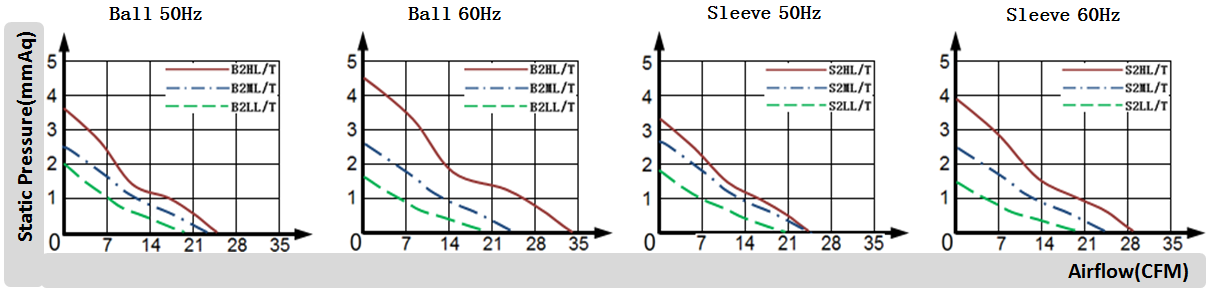

Air Flow-Static Pressure Characteristics
Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire or Terminals
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package:50PCS/CTN
