8038 220V13 ~ 25 CFM
Specification
Model
Bearing
Voltage
Freq
Current
Power
Speed
 Air Flow
Static
Pressure
Noise
VAC
Hz
A
W
RPM
  CFM
m3/min
mm H2O
dB-A
8038B2HL
Ball
220-240
50/60
0.12/0.09
17.2/12
2400/2900
20/25
0.57/0.71
3.1/4.8
34/37
8038B2HT
Ball
220-240
50/60
0.12/0.09
17.2/12
2400/2900
20/25
0.57/0.71
3.1/4.8
34/37
8038B2ML
Ball
220-240
50/60
0.05/0.04
7/5.7
2250/2400
18/20
0.51/0.57
2.8/3.7
32/34
8038B2MT
Ball
220-240
50/60
0.05/0.04
7/5.7
2250/2400
18/20
0.51/0.57
2.8/3.7
32/34
8038B2LL
Ball
220-240
50/60
0.04/0.03
6/5
2100/2150
15/16
0.42/0.45
2.4/2.8
29/30
8038B2LT
Ball
220-240
50/60
0.04/0.03
6/5
2100/2150
15/16
0.42/0.45
2.4/2.8
29/30
8038S2HL
Sleeve
220-240
50/60
0.12/0.09
17.5/12.3
2200/2750
18/23
0.51/0.65
3.0/4.6
32/35
8038S2HT
Sleeve
220-240
50/60
0.12/0.09
17.5/12.3
2200/2750
18/23
0.51/0.65
3.0/4.6
32/35
8038S2ML
Sleeve
220-240
50/60
0.05/0.04
7/5.8
2100/2100
16/16
0.45/0.45
2.5/2.8
29/29
8038S2MT
Sleeve
220-240
50/60
0.05/0.04
7/5.8
2100/2100
16/16
0.45/0.45
2.5/2.8
29/29
8038S2LL
Sleeve
220-240
50/60
0.04/0.03
6/5
1900/1800
14/13
0.40/0.37
2.3/2.1
26/25
8038S2LT
Sleeve
220-240
50/60
0.04/0.03
6/5
1900/1800
14/13
0.40/0.37
2.3/2.1
26/25

All model could be customized. Please contact with YYC Sales.                                       Safety:UL/TUV/CE/CCC

Specifications are subject to change without notice.

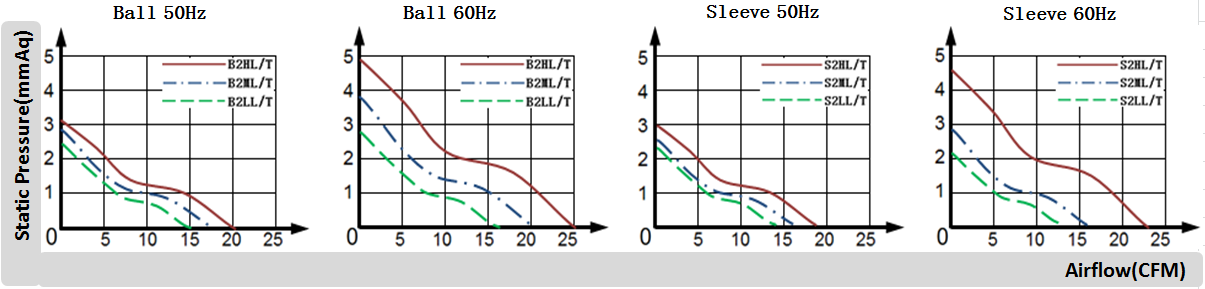

Air Flow-Static Pressure Characteristics


  Frame: Aluminum alloy

  Impeller: PBT Plastic

  Protected: Impedance protected

  Connection: Lead Wire or Terminals

  Ball Bearing: -20°C to +70°C

  Sleeve Bearing: -10°C to +70°C

  Package: 50PCS/CTN
