| 8038 115V16 ~ 25 CFM |  |
Specification
|
Model |
Bearing |
Voltage |
Freq |
Current |
Power |
Speed |
Air Flow |
Static
Pressure
|
Noise |
|
|
VAC |
Hz |
A |
W |
RPM |
CFM |
m3/min |
mm H2O |
dB-A |
||
|
8038B1HL |
Ball |
115 |
50/60 |
0.20/0.15 |
14/9.8 |
2350/2850 |
20/25 |
0.57/0.71 |
3.0/4.6 |
34/37 |
|
8038B1HT |
Ball |
115 |
50/60 |
0.20/0.15 |
14/9.8 |
2350/2850 |
20/25 |
0.57/0.71 |
3.0/4.6 |
34/37 |
|
8038B1ML |
Ball |
115 |
50/60 |
0.09/0.07 |
6.1/4.8 |
2300/2550 |
19/22 |
0.54/0.63 |
2.8/3.7 |
33/35 |
|
8038B1MT |
Ball |
115 |
50/60 |
0.09/0.07 |
6.1/4.8 |
2300/2550 |
19/22 |
0.54/0.63 |
2.8/3.7 |
33/35 |
|
8038B1LL |
Ball |
115 |
50/60 |
0.07/0.05 |
5/4 |
2250/2350 |
18/19 |
0.51/0.54 |
2.6/3.0 |
32/33 |
|
8038B1LT |
Ball |
115 |
50/60 |
0.07/0.05 |
5/4 |
2250/2350 |
18/19 |
0.51/0.54 |
2.6/3.0 |
32/33 |
|
8038S1HL |
Sleeve |
115 |
50/60 |
0.20/0.15 |
14/9.8 |
2300/2750 |
19/24 |
0.54/0.68 |
2.7/4.1 |
33/36 |
|
8038S1HT |
Sleeve |
115 |
50/60 |
0.20/0.15 |
14/9.8 |
2300/2750 |
19/24 |
0.54/0.68 |
2.7/4.1 |
33/36 |
|
8038S1ML |
Sleeve |
115 |
50/60 |
0.09/0.07 |
6.4/5.2 |
2150/2250 |
17/18 |
0.48/0.51 |
2.5/3.2 |
30/32 |
|
8038S1MT |
Sleeve |
115 |
50/60 |
0.09/0.07 |
6.4/5.2 |
2150/2250 |
17/18 |
0.48/0.51 |
2.5/3.2 |
30/32 |
|
8038S1LL |
Sleeve |
115 |
50/60 |
0.07/0.05 |
4.8/4 |
2150/2100 |
17/16 |
0.48/0.45 |
2.3/2.7 |
30/29 |
|
8038S1LT |
Sleeve |
115 |
50/60 |
0.07/0.05 |
4.8/4 |
2150/2100 |
17/16 |
0.48/0.45 |
2.3/2.7 |
30/29 |
All model could be customized. Please contact with YYC Sales. Safety:UL/TUV/CE/CCC
Specifications are subject to change without notice.

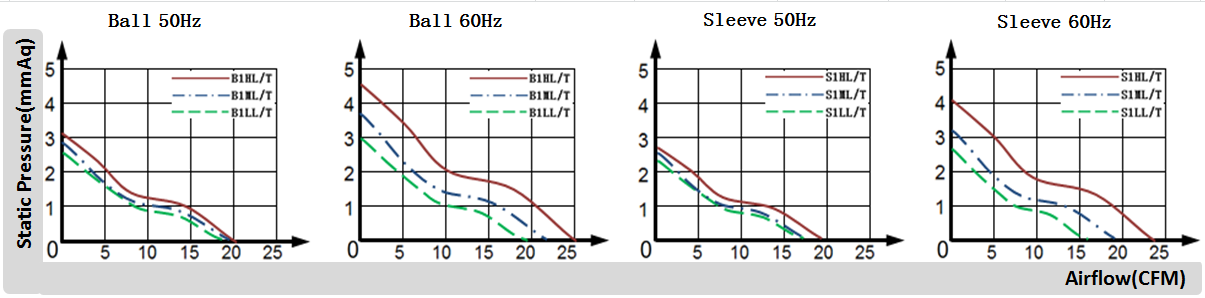

Air Flow-Static Pressure Characteristics
Frame: Aluminum alloy
Impeller: PBT Plastic
Protected: Impedance protected
Connection: Lead Wire or Terminals
Ball Bearing: -20°C to +70°C
Sleeve Bearing: -10°C to +70°C
Package: 50PCS/CTN
