Home >Product Center > AC Fan > 80 x80 x 25mm

80x80x25mm 115V 12 ~ 20 CFM
Specification

Model
Bearing
Voltage
Freq
Current
Power
Speed
 Air Flow
Static
Pressure

Noise
VAC
Hz
A
W
RPM
  CFM
m3/min
mm H2O
dB-A
8025B1HL
Ball
115
50/60
0.18/0.14
15.5/12.3
2600/3100
16/20
0.45/0.57
3.5/5.0
33/36
8025B1ML
Ball
115
50/60
0.06/0.05
5.3/4.3
2500/2750
15/18
0.42/0.51
3.3/4.1
32/33
8025B1LL
Ball
115
50/60
0.04/0.04
4/3.6
2150/2100
14/14
0.40/0.40
2.6/2.3
28/27
8025S1HL
Sleeve
115
50/60
0.17/0.14
15.5/12.2
2500/3000
16/20
0.45/0.57
3.5/5.0
33/35
8025S1ML
Sleeve
115
50/60
0.06/0.05
5.2/4.4
2300/2400
15/16
0.42/0.45
2.8/3.1
30/31
8025S1LL
Sleeve
115
50/60
0.05/0.04
4/3.5
2100/1950
13/12
0.34/0.33
2.2/1.8
28/25
All model could be customized. Please contact with YYC Sales.                             Safety:UL/TUV/CE/CCC

Specifications are subject to change without notice.

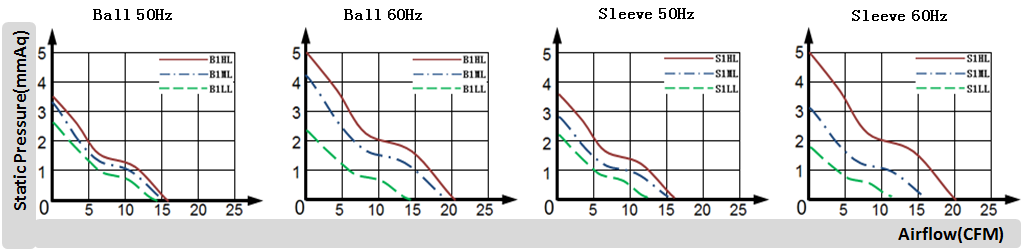

Air Flow-Static Pressure Characteristics


   Frame: Aluminum alloy

 Impeller: PBT Plastic

 Protected: Impedance protected

 Connection: Lead Wire

 Ball Bearing: -20°C to +70°C

 Sleeve Bearing: -10°C to +70°C

 Package:50PCS/CTN
