Home >Product Center > AC Fan > 80 x80 x 25mm

8025 220V11 ~ 20 CFM
Specification

Model
Bearing
Voltage
Freq
Current
Power
Speed
 Air Flow
Static
Pressure

Noise
VAC
Hz
A
W
RPM
  CFM
m3/min
mm H2O
dB-A
8025B2HL
Ball
220-240
50/60
0.07/0.06
12/10
2600/3100
16/20
0.45/0.57
3.5/5.0
33/36
8025B2ML
Ball
220-240
50/60
0.04/0.04
8/6.2
2400/2700
15/18
0.42/0.51
3.3/3.9
31/33
8025B2LL
Ball
220-240
50/60
0.03/0.02
5.1/4.2
2250/2300
14/14
0.40/0.40
2.6/2.6
28/28
8025S2HL
Sleeve
220-240
50/60
0.07/0.06
12.4/10
2500/2900
16/20
0.45/0.57
3.5/4.5
32/34
8025S2ML
Sleeve
220-240
50/60
0.04/0.03
6.6/5.5
2300/2400
15/15
0.42/0.42
2.9/3.3
30/31
8025S2LL
Sleeve
220-240
50/60
0.03/0.02
5.2/4.3
1900/1700
12/11
0.34/0.33
1.8/1.3
25/23

All model could be customized. Please contact with YYC Sales.                                     Safety:  UL/TUV/CE/CCC

Specifications are subject to change without notice.

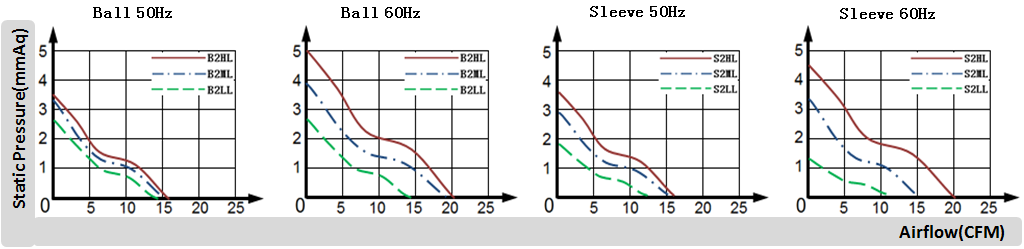

Air Flow-Static Pressure Characteristics



Frame: Aluminum alloy

Impeller: PBT Plastic

Protected: Impedance protected

Connection: Lead Wire

Ball Bearing: -20°C to +70°C

Sleeve Bearing: -10°C to +70°C

Package:50PCS/CTN
